IEC has a 55-year history of manufacturing quality slip rings with precision and care. IEC slip rings have been used in applications involving the far reaches of space and the deepest depths of the oceans.
With over 10,000 slip ring drawings we have experience with a wide variety of designs and applications. Mounting options include, but are not limited to, end-of-shaft, over-the-shaft and inside-the-shaft mounting.
IEC slip rings are manufactured using the highest quality materials available including solid coin silver rings, graphite and silver brushes, stainless steel, and aluminum alloys. IEC uses state of the art CNC machines to manufacture all of our parts and an experienced workforce to assemble each slip ring.

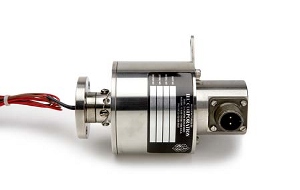

The BX Style slip ring is available with 2 to 40 conductors. The BX mounts cantilevered at the end of a shaft using a 2″ or 4″ mounting flange. This unit is a sealed unit with your choice of anodized aluminum, or stainless steel splash proof encasement. The stainless steel units may be oil filled for condensation prevention. The BX 16,20,30,40 is a highly customizable large version of the standard BX product line. Available in 4 standard lengths, we can vary the wiring configuration to meet your specific needs. Our BX model is so popular and mission critical that we maintain a variety ofconfigurations on the shelf for immediate delivery.
The TB 2.0 to 4.0 model is designed to fit over shafts from 1 to 4 inches. Standard models available with bore sizes of 2 or 4 inches and 4, 8, or 12 rings. If your application requires a nonstandard bore size, we will build the next larger size and install a reducing sleeve with the required bore size for a nominal charge. Please consult our staff for information concerning rotational speeds.

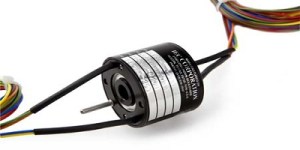

The TB 1.0 model is available in 6, 12, and 18 conductors. The model is designed to fit over a .375 to 1.00 inch diameter shaft. The optional stainless steel encasement makes it suitable to operate in a salt air environment. The assembly can be modified to rotate up to 3,000 rpm for short periods of time. Please consult our staff for information concerning rotational speeds.
The HT (High Temperature) style units evolved through custom development with customer partners in the petroleum industry. These unique products are designed for the harshest of environments, they are able to withstand the high pressure, high rpm, and extreme temperature typically associated with downhole tooling applications. These units are able to run in synthetic oil. Each unit is manufactured with an anodized aluminum encasement. Our standard unit is manufactured with 2 foot leads on each end. The HT-1.79 and HT-1.85 is a 20 ring unit designed to run in synthetic oil. Mounting options can be modified to meet customer specific needs.

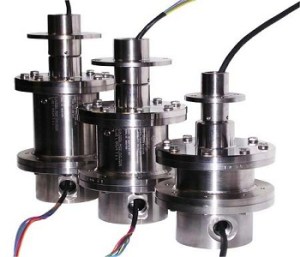

IEC has attained explosion proof/hazardous location certification from CSA International for the IEL BXXP series of electrical slip rings for use in Class 1, Division 1, Groups C and D locations. The BXXP is available in standard configurations with 2, 4, 6, 8, 10, or 12 rings. Custom configurations are available with up to 44 rings. Please contact our staff for assistance with your needs.

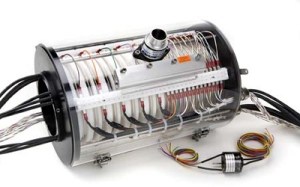

At IEC Corporation, we strive to meet the needs of our customers. If an assembly from our standard line does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company’s exact needs. With over 50 years of experience IEC has amassed over 10,000 drawings, thousands of custom slip ring designs and decades of experience supporting customers worldwide.
- Oil and Gas Drilling
- Logging and Perforation
- Seismic Exploration
- Coil Tubing Applications
- Marine Winch and Towed Arrays
- Food Processing Equiment
- Bottling and Filler Equipment
- Packaging Equipment
- Measurment Equipment
- Strain Guage
- Military & Defense
- Oceanographic Instrumentation
- Wind Turbines
- Stress and Torque Readings
- Signal Transfer
- Temperature Control
