Materontek Pressure TX’s

Series: EPT1000

Sensing and Internet of Things

OEM Pressure Transmitter
Stainless steel pressure sensor
Mass production, automated calibration

Features:

  • Measuring ranges from 200mbar to 100bar
  • Gauge pressure
  • Accuracy: ±0.5%FSO(Typ.)
  • Calibrated and temperature compensated
  • Stainless steel pressure sensor
  • Output 4…20mA, DC1…5V, DC 0.5…4.5V

Application:

  • Hydraulic and pneumatic
  • Machine building
  • Pumps
  • Water treatment
  • IoT pressure measurement

Technical data:

Pressure range:

Nominal pressure [bar]: 0.2, 0.35, 0.6, 1, 1.6, 2.5, 4, 6, 10, 16, 20, 25, 35, 50, 70, 100 (Standard Ranges – others available on request, in Vacuum, and Compound Ranges)
Overpressure [bar]: 0.4, 0.5, 1, 1.5, 3, 5, 7, 10, 15, 30, 40, 50, 70, 100, 140

Performance:

  • Accuracy* 0.5 %FS@25°C *Linearity (best straight line) +
  • Hysteresis + Repeatability
  • Operating Temperature -20 to 85°C
  • Compensated Temperature Range -10 to 70°C
  • Vibration 20 g RMS(20 to 2000Hz)
  • Shock 100 g(10ms)
  • Cycles 10×105
  • Long Term Stability 0.2 %FS
  • Electrical @25°C


Output signal / Supply:

  • 2-wire 4…20mA / VS = 9… 30VDC
  • 3-wire 1…5VDC / VS = 9… 30VDC
  • 3-wire 0.5…4.5VDC / VS = 9… 30VDC
  • Insulation Resistance 100 MΩ@100VDC
  • EMC Test IEC61000-6-2/IEC61000-6-3
  • Reverse polarity protection No damage – no function


Physical Specifications:

  • Housing 304 stainless steel
  • Diaphragm 316L stainless steel
  • Oil Filling Silicone oil
  • Protection IP65
  • Weight ~200g

Connections:

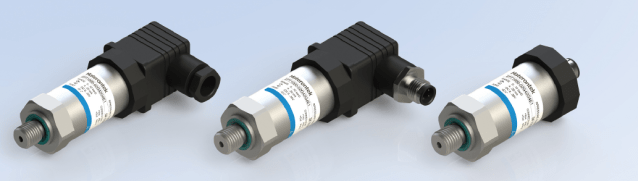

  • E1 – DIN175301-803A/DIN43650/IP65
  • E2 – DIN175301-803A with Circular connector, M12x1(4-pin)/IP65
  • E3 – Circular connector M12x1(4-pin)/IP65

Datasheet- Pressure Transmitter-EPT1000-EN



Accessories:     Intelligent LED digital display:

Model  DP-4.

Features:
– 2-wire LED display
– No external power supply required
– The minimum operating current: 3mA
– Four-digit LED, display resolution 1/9999
– Display physical amount: pressure, temperature, flow etc.
– Standard DIN43650 electrical connection

Datasheet-Intelligent LED digital display-DP-4 -EN
