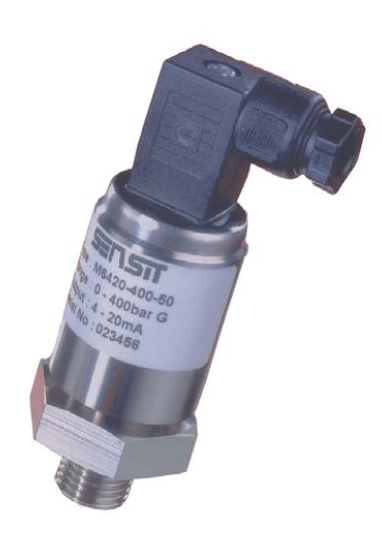

Sensit – Pressure OEM Series M6420-50

“The Standard”  OEM Pressure Transmitter 4-20mA Output.

The M6420-50 is a two wire, 4-20mA pressure
transmitter and is available in standard ranges from
0.5 bar to 600 bar, or may be scaled to customer
requirements. All ranges are available in gauge or
absolute format.

Description:
The M6420-50 pressure transmitter is based on a four
active arm strain gauge bridge fused to a high purity
alumina ceramic diaphragm, offering high natural
output coupled with superb chemical and corrosion
resistance. This is housed within a stainless steel case with integral electronics and is supplied with a plug and socket electrical connection. Pressure connection is a G1/4 male thread as standard. Other threads are available on request.
